TRACKSAFE®

Next Generation Location Case
Tracksafe

The Tracksafe enclosure range has been developed to address the need for a robust solution to support the Digital Railway of the future.

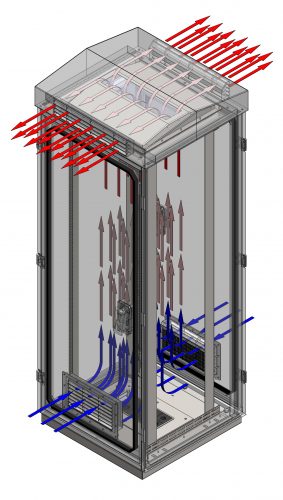

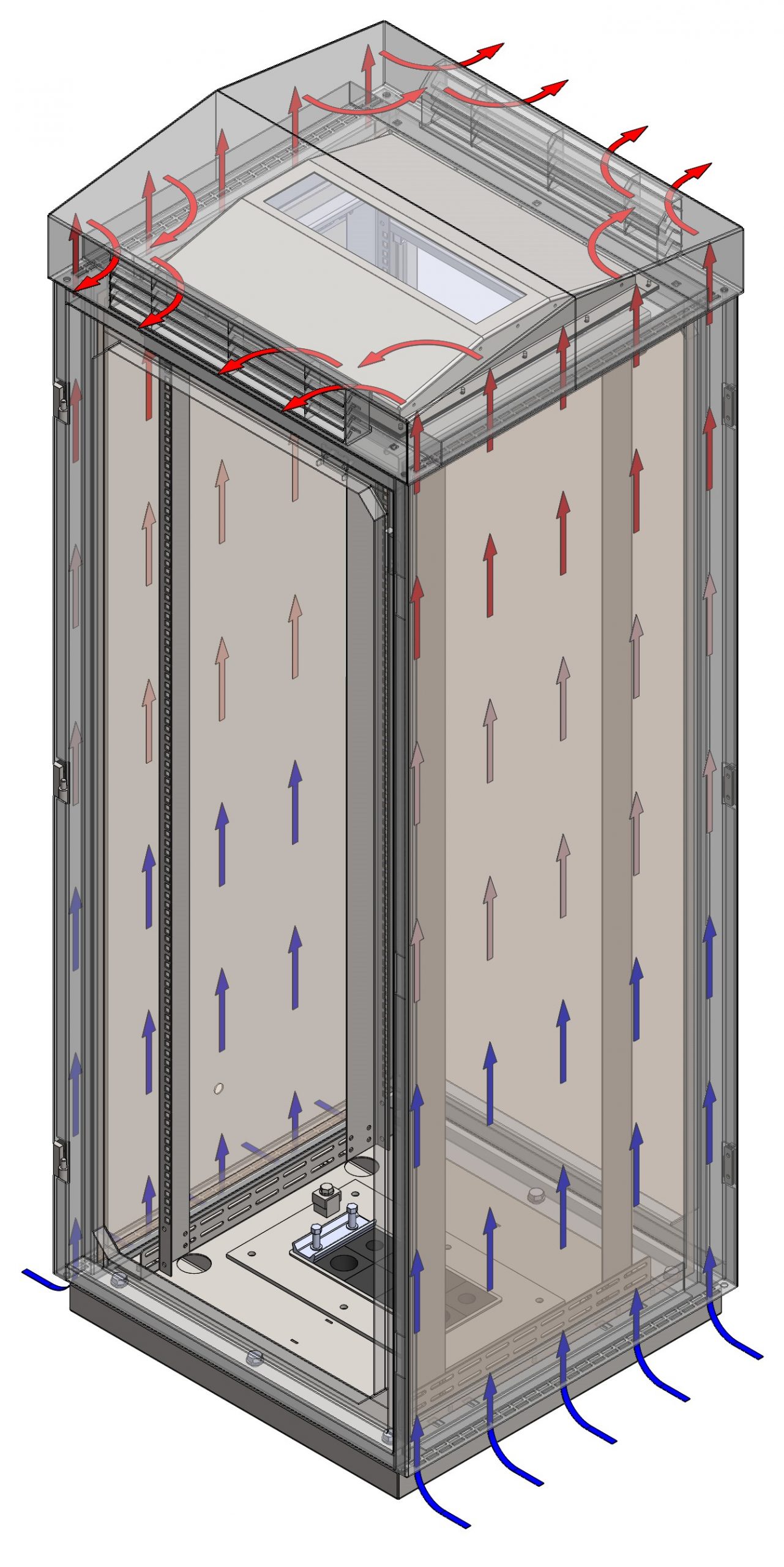

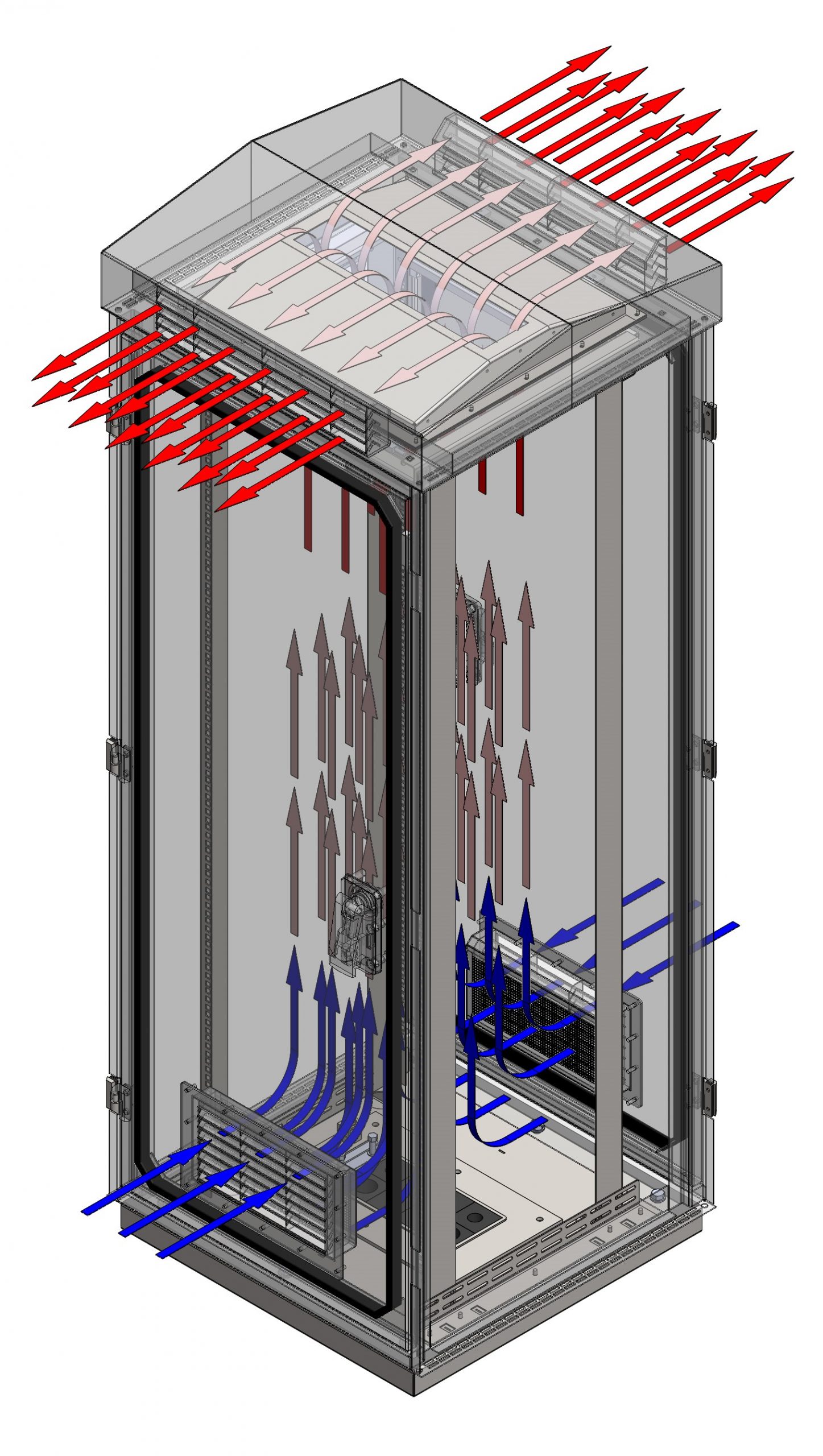

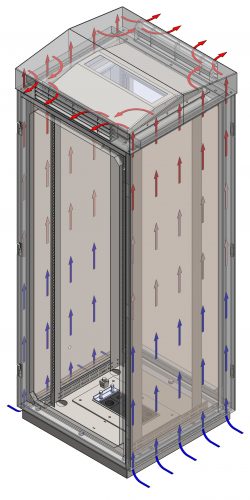

It’s a zero maintenance system, which through the use of clever engineering maximises passive cooling principles to eliminate the need for ongoing maintenance that an enclosure with fans or air conditioners would require.

The passive cooling system gives sufficient cooling to address most Network Rail active equipment applications.  Where higher cooling loads are required, the Tracksafe product range has solutions.

Tracksafe is designed and tested to meet Network Rail’s performance requirements for installation within 3 metres of the track.

Enquire today to see how Tracksafe can support your project.

Download TRACKSAFE Brochure

TRACKSAFE® is a registered trade mark of Rainford Solutions Ltd.

Please note that products and information displayed on this website may change without notice due to continuing product development and are for illustration purposes only. Dimensions of the finished product may also vary slightly, please check with our technical team at time of order.

  • Analogue and digital signalling
  • GMSR, 3G 4G 5G, Tetra, microwave fixed wireless access (FWA)
  • Power systems
  • Communications and radio control for MNO's
  • CCTV and safety systems
  • ETCS
  • Telecoms
  • Environmental monitoring
  • Realtime driver information
EnclosuresWidth A (In mm)Depth B (In mm)Height C (In mm)Equipment Area (In U)
Single Bay600600120024
Single Bay600600180036
Double Bay1200600 120024
Double Bay1200600180036
Swipe to see more

    The cabinets are amazing, so well built and engineered, they are miles ahead of anything that is currently being used or that I have seen. There are quite a lot of projects out in Qatar that require these units and I will promote them wherever I can.
    Brian Thomsen
    Leonardo Engineer
    Very solid cabinets, low maintenance, high quality, keeps all equipment at a controlled temperature. Perfect for controlled deployment Visit https://b4rn.org.uk/ for further details on the B4RN project.
    Tom Rigg
    Broadband for the Rural North Ltd
    Chief Operating Officer
    Really satisfied with excellent service level.
    Materials Buyer
    Electrical / Electronic Manufacturer
    Our partnership with Rainford Solutions has helped us to develop bespoke cabinets for demanding applications using their experience in design engineering and production knowhow.
    Telecommunications Company
    Technical Director
    We have used the services of Rainford Solutions several times and have found their quotes and service both robust and competitive. We are very happy with the product in terms of quality and functionality.'
    Telecommunications Company
    We are very happy with the product in terms of both function and the quality of the build.
    UK Market Leader In Telecoms
    Technical competence is more than excellent, I would say outstanding.
    Telecommunications Company
    Quality of product always meets our customer requirements, delivery and communication excellent.
    Telecommunications Company
    These fibre-only cabinets (together with the full-capacity buried ducts) are a far neater solution providing a higher reliability, future-proofed, solution for generations to come. Do it once and do it correctly.
    Broadband for the Rural North

    Outdoor Enclosures Product Overview:

    Communication, power, signalling and security are all essential functions that railway systems rely on, so here at Rainford Solutions, we’re making sure we keep the UK’s rail network on track by designing and manufacturing high-quality rail infrastructure.

    Rainford Solutions’ TRACKSAFE® outdoor enclosures are specially designed to meet the requirements of the UK rail market, the range offers a modular multi-bay, multi-height, multi-depth product with the flexibility to house a broad range of equipment in a variety of industry-standard mounting formats.

    With robust construction, coupled with a variety of vandal-resistant features, the TRACKSAFE® outdoor enclosure product range provides a cost-effective solution for all your outdoor equipment protection needs.

    Our outdoor enclosures are supplied fully assembled ready for immediate deployment.

    Outdoor Enclosures Key Features:

    • Range of widths and heights
    • Construction material: 1.4003 stainless steel
    • Finish: polyester powder coated
    • IP Rated
    • Intelligent thermal management system
    • Vandal resistant features including: die cast swing handles, 3-point locking
    • Gland plate in each bay for cable entry
    • 19 inch, ETSI and DIN rail equipment mounting options
