Cage Partitioning

Data Centre Cage Partitioning

Engineered for data centre security and airflow management, Rainford Cage Partitioning solutions provide a flexible and robust alternative to solid walls. Our modular mesh panel systems allow quick installation, seamless integration with existing layouts, and customisation to specific facility requirements. With a range of door types and locking systems, they ensure secure yet convenient access to equipment areas.

Cage Partitioning
Multiple Locking Options
Modular and Scalable
Sliding or Hinged Doors
Rear Mesh Doors

Advantages

  • Secure Equipment Segregation
  • Modular & Scalable Design
  • Enhanced Airflow with Mesh Panels
  • Retrofit & New Build Friendly

Standard Spec

  • Frame Material: Powder-coated steel mesh
  • Panel Widths: 200mm – 1500mm
  • Panel Heights: 2200mm – 3000mm
  • Mesh Size: 50×50mm
  • Wire Diameter: 3.75mm × 3mm
  • Frame: 20×30×1.25mm tubular steel
  • Posts: 60×40×1.5mm
  • Door Options: Hinged or Sliding (Single/Double)
  • Locking: Padlock, Euro Cylinder, Electric Strike, Panic Bar
  • Finish: RAL 7037 (custom colours on request)

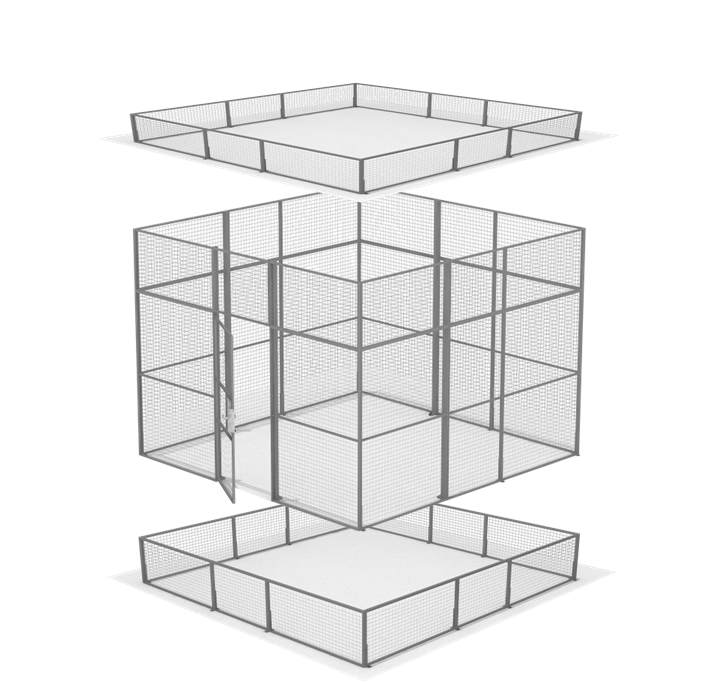

  • Ceiling Panels: Optional mesh ceilings for full enclosures
  • Retrofit Ready: No structural modifications required

A range of configurable options:

In accordance with:

  • QMS: ISO 9001:2015
  • RoHS: EU/2015/863
  • REACH: EC/1907/2006

Containment Range Gallery

← Swipe to view more →

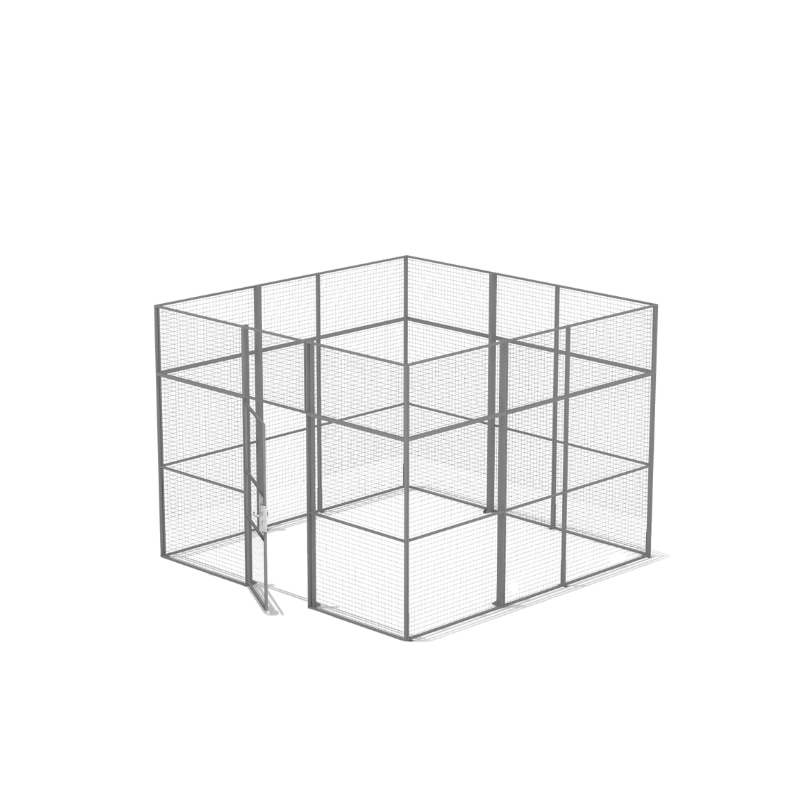

High Airflow Cage

High Airflow Cage

Durable mesh caging delivering secure access control while maintaining maximum airflow.

Enquire Now

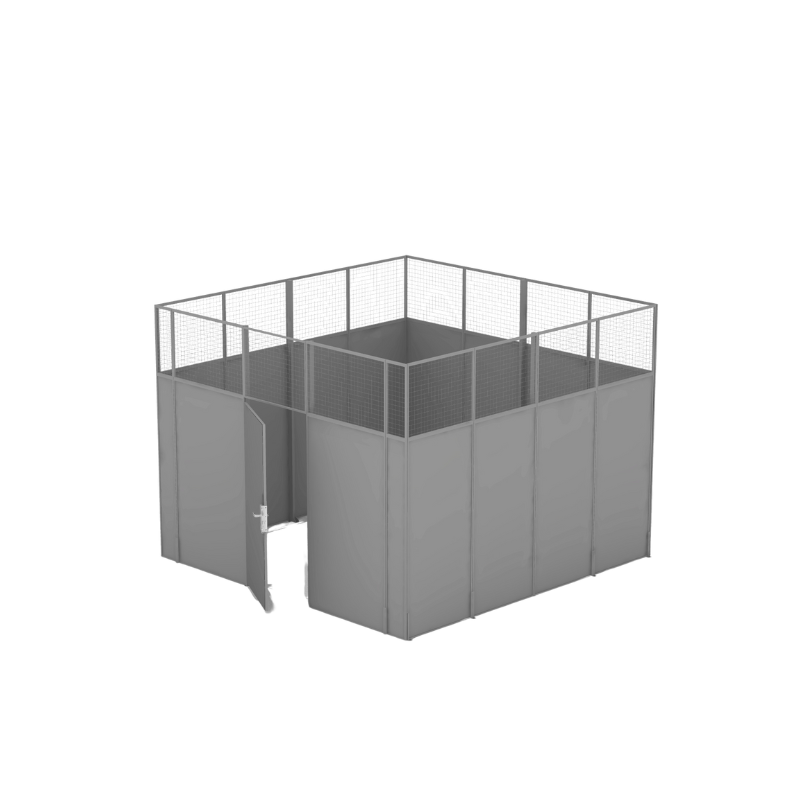

Solid Panel Cage

Solid Panel Cage

Partition solutions providing visual security, separating workloads without restricting cooling airflow.

Enquire Now
High Security Cage

High Security Cage

Floor-to-ceiling caging or partitioning for maximum physical security.

Enquire Now
